MASTERCUT
Mastercut is a longitudinal and transversal cutting machine designed specifically for plastic foams, including polyurethane, honeycomb paper, corrugated paper, natural fiber. With automatic adjustable rotating cutting discs and a set up cycle time less than 30 seconds, Mastercut can handle thicknesses up to 100mm while maintaining accuracy and efficency.
- Maximum cutting thickness
- 100 - 100mm
- Maximum width
- 1250-1500 - 1250-1500mm
- Weight
- 10000 - 8000Kg

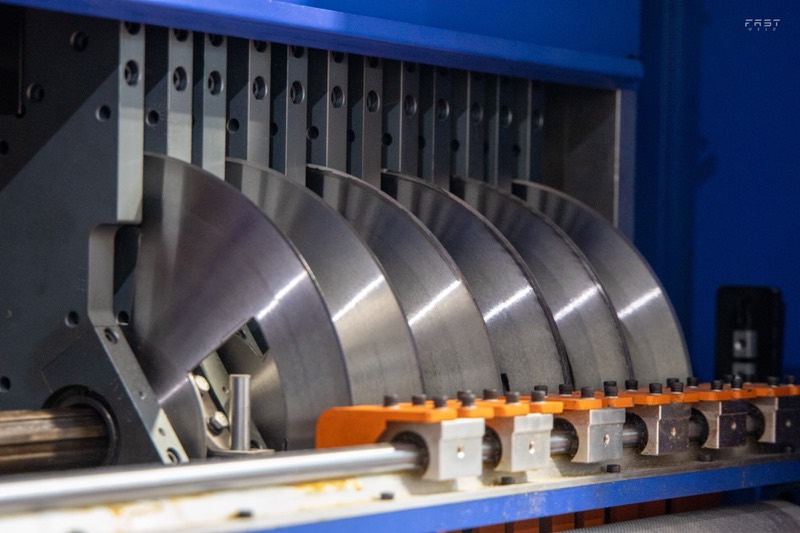

Precision and versatility
Mastercut's automatic adjusting rotating cutting disks ensure an accurate cutting. Mastercut can cut and slit at the same time, allowing to manufacture hinged corners in one operation.

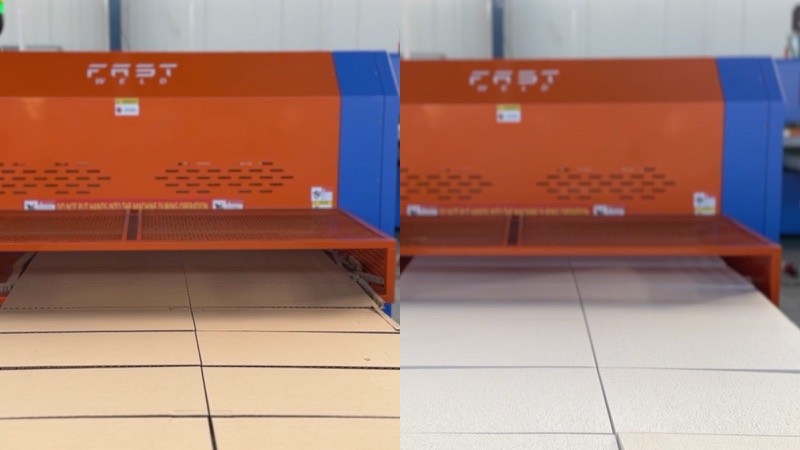

Quick setup and minimal downtime
With a setup cycle time of less than 30 seconds and the ability to switch between small and large series with minimal downtime, Mastercut keeps your production moving.

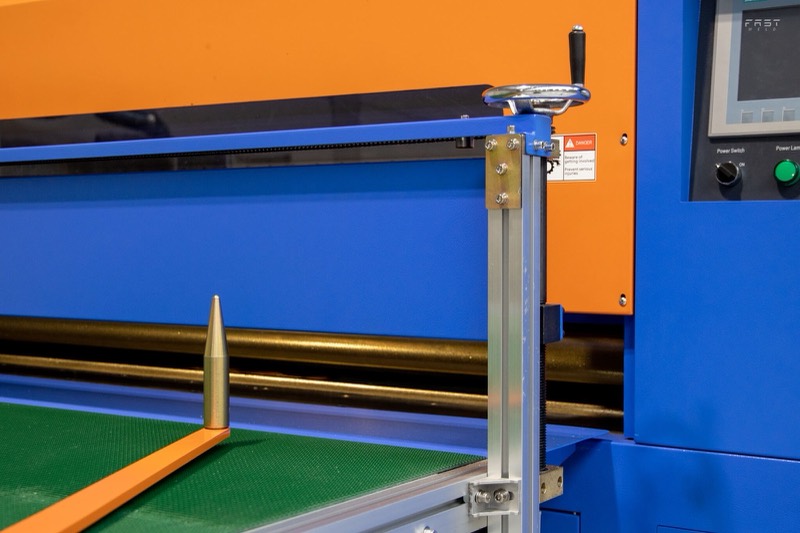

Plank auto-loader
Mastercut features a plank auto-loader to maximize cutting efficiency and minimize manual labor. Just stack your planks on the belt, Mastercut will drive them automatically and do the job!!
Technical Specs
Key points
- Transversal flying blade
- Setup cycle time: less than seconds
- Automatic adjusting rotating cutting disks
- Plank auto-loader
- Cutting and slitting, all in one.
| Model | Unit | Mastercut CX DUO AUTO | Mastercut CX |
|---|---|---|---|
| Dimensions | mm | 1800 x 3610 x 2215 | 2930 x 1330 x 2115 |
| Maximum cutting thickness | mm | 100 | 100 |
| Maximum width | mm | 1250-1500 | 1250-1500 |
| Automatic stacker height | mm | Max. 600 | |
| Blades | 16 blades : slitting/ cutting blades- | 8 cutting blades + transversal flying | |
| Weight | Kg | 10000 | 8000 |
| Installed Power | KW | 15 | 15 |
| Compressed air | Bar | 6-8 | 6-8 |
| Automatic blade sharpening | Yes | ||
| Minimum grip thickness | mm | 3 |

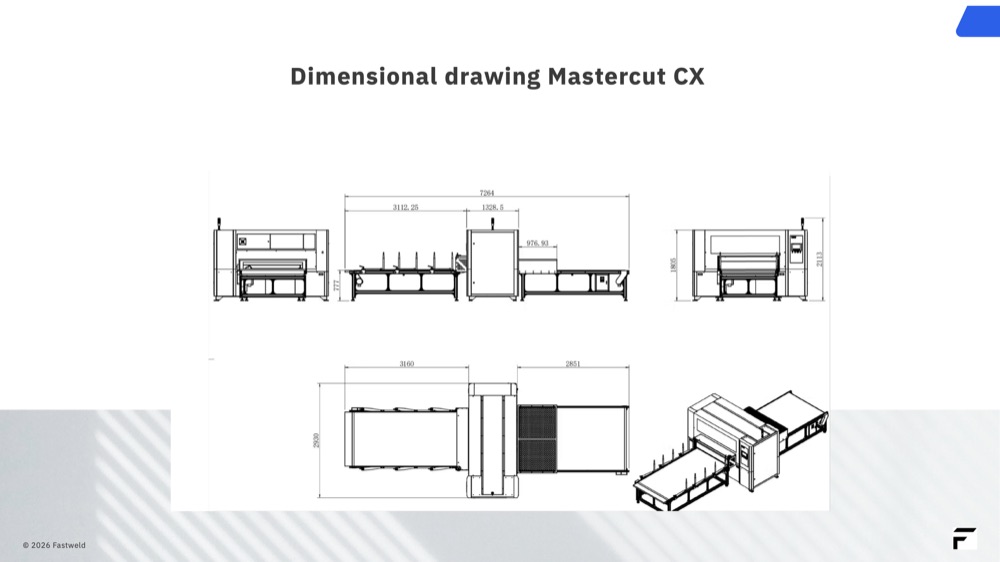

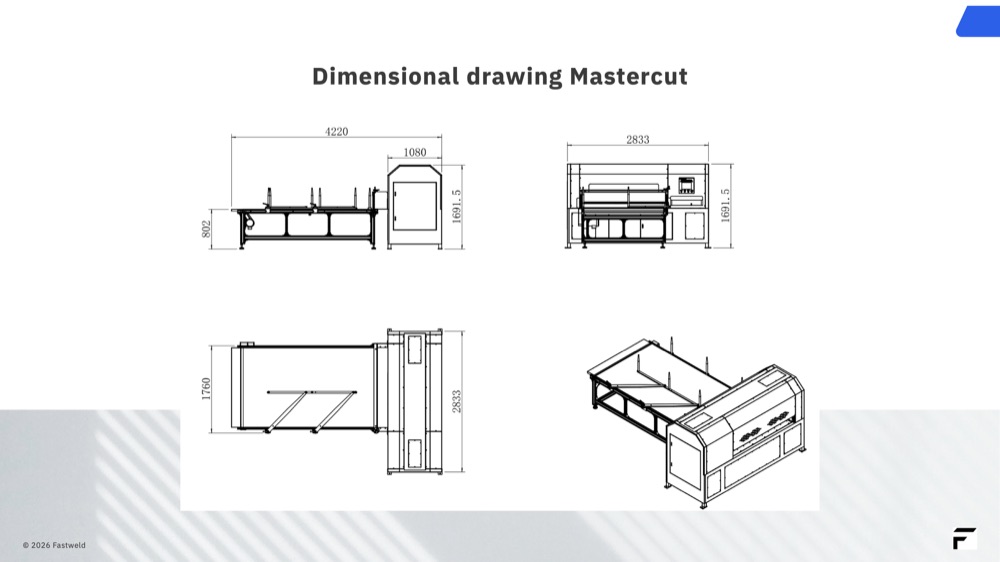

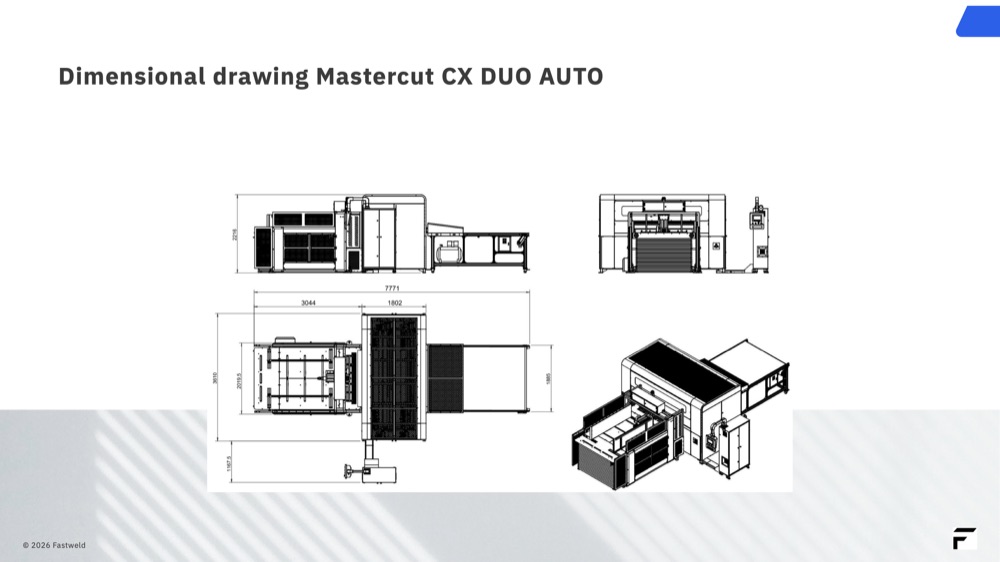

Dimensional drawings
Click a drawing to read the dimensions at full size.
Frequently asked questions
Thanks to its automatic loading device, planks can be stacked on top of each other. machine will work continuously.
Honeycomb paper, corrugated board, Mondi paper foam, polyethylene, polyurethanne, polypropylene foams...
Yes, our maintenance Team is on call to assist you with any concern or issue.
