FASTWELD L, XL, XL+
Fastweld L, XL, and XL+ are automatic foam welding machines designed to weld polyethylene, EVA, and polypropylene foams. With their compact design, user-friendly interface, and unmatched welding speed, these machines offer a high-quality, cost-effective solution for foam welding applications.
- Maximum welding thickness
- 380 - 200mmmm
- Welding Area
- 900 x 600 - 1200 x 800mm
- Minimum grip thickness
- 12 - 12mm
Suitable materials

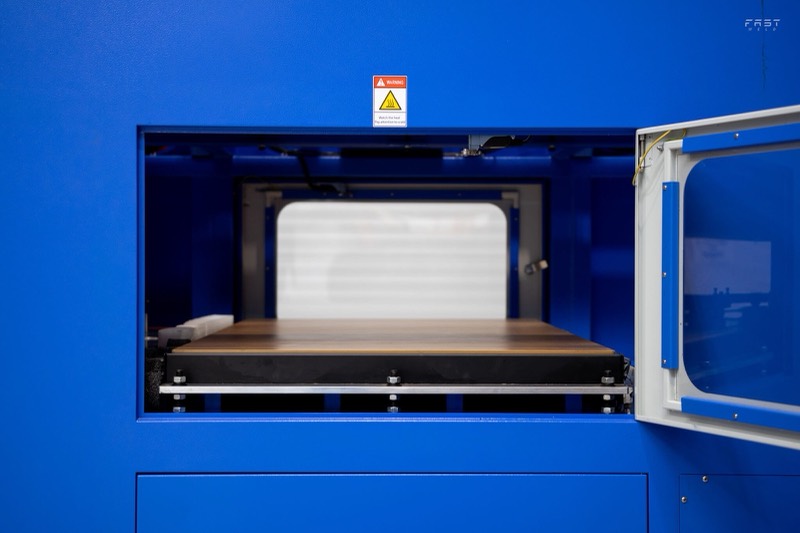

World's fastest welding machines
Fastweld L, XL, and XL+ are designed for maximum efficiency, operating ten times faster than conventional manual welding.

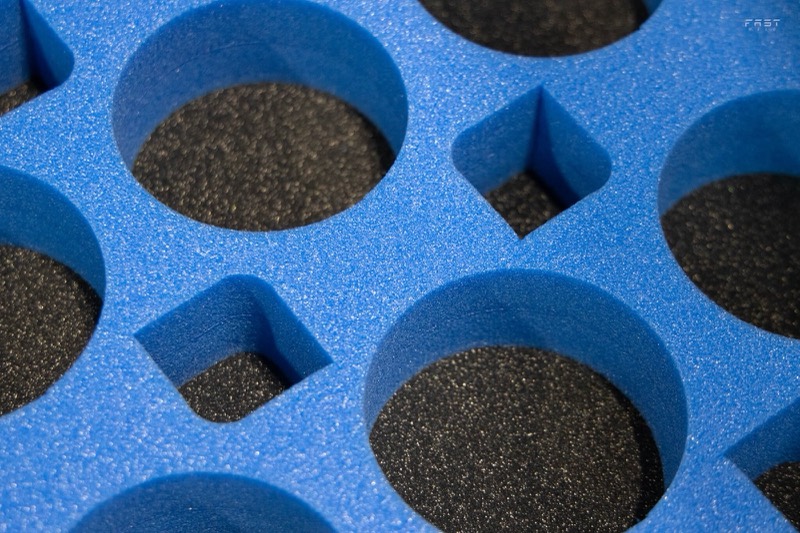

Versatile and cost-effective
Capable of welding various foam types, these machines offer a cost-effective solution with a 1.5-year investment return.

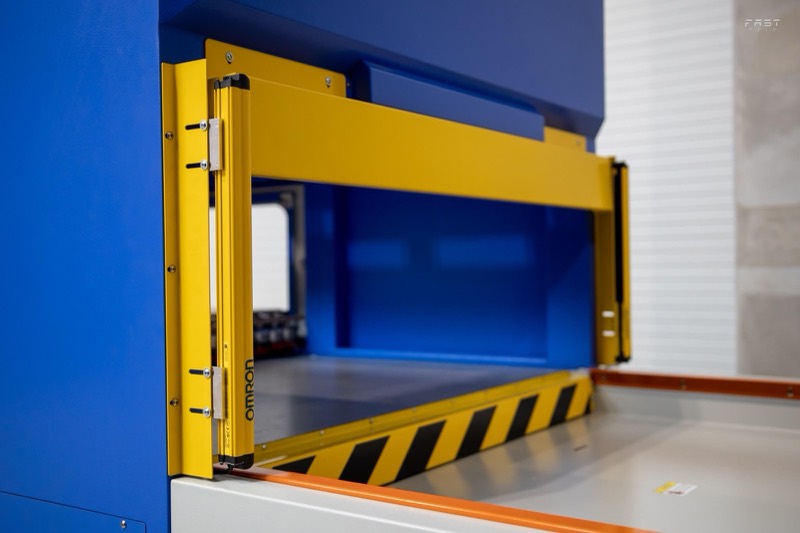

User-friendly and efficient
Fastweld L, XL, and XL+ feature a user-friendly interface and require no skilled operators, ensuring efficient and high-quality foam welding.
Technical Specs
Key points
- Automatic foam welding machines
- Designed for polyethylene, EVA, and polypropylene foams
- 10x faster than conventional manual welding
- 1.5-year investment return
- 4-hour operator training
| Model | Unit | FASTWELD L | FASTWELD XL | FASTWELD XL+ | FASTWELD 2T |
|---|---|---|---|---|---|
| Maximum welding thickness | mm | 380 | 380 | 380 | 200mm |
| Welding Area | mm | 900 x 600 | 1200 x 800 | 1200 x 800 | 1200 x 800 |
| Minimum grip thickness | mm | 12 | 12 | 12 | |
| Maximum layers | 5 | 5 | 5 | 5 | |
| Overall Dimensions | mm | 3500 x 1250 x 2580 (height) | 5354 x 1975 x 2890 (height) | 5354 x 1975 x 2890 (height) | 3920 x 2450 x 2850mm (height) |
| Weight | Kg | 1500 | 1800 | 3300 | 3800 |
| Cycle time | sec | 11-15 | 15 | 15-20 | 15-20 |
| Compressed air requirement | Bar | 6 - 10 | 6 - 10 | 6 - 10 | |
| Installed Power | 380 V - 40A | 380 V - 63A | 380 V - 63A | 380 V - 40Kw - 61A | |
| Number of work stations | 2 | 2 | 2 | 2 | |
| Minimum/ Maximum grip thickness | mm | 8/22 |

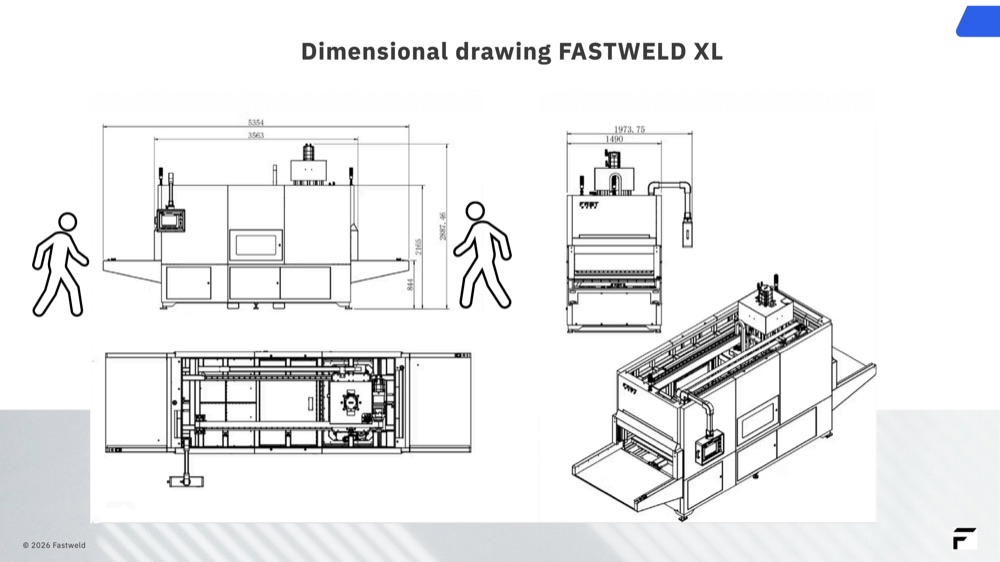

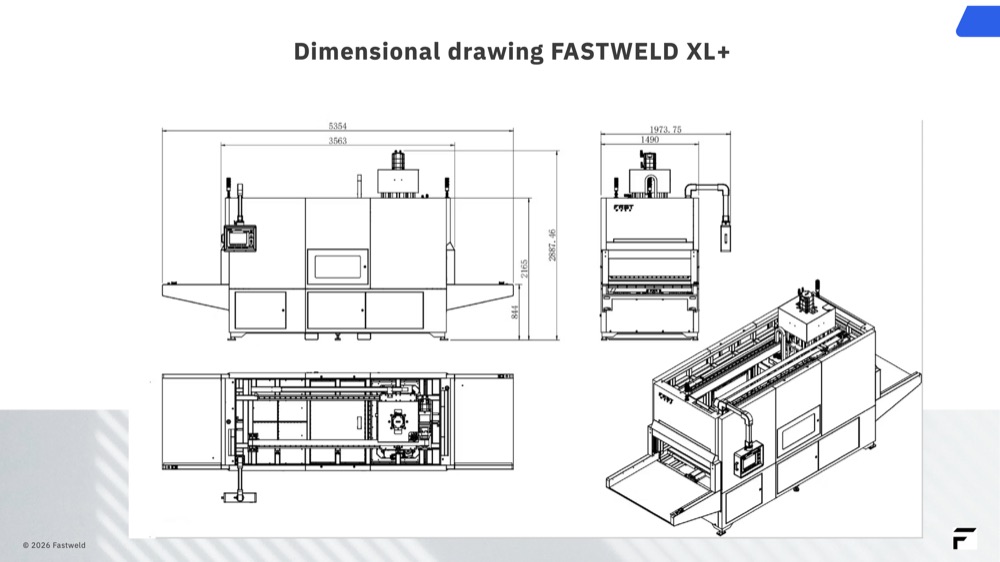

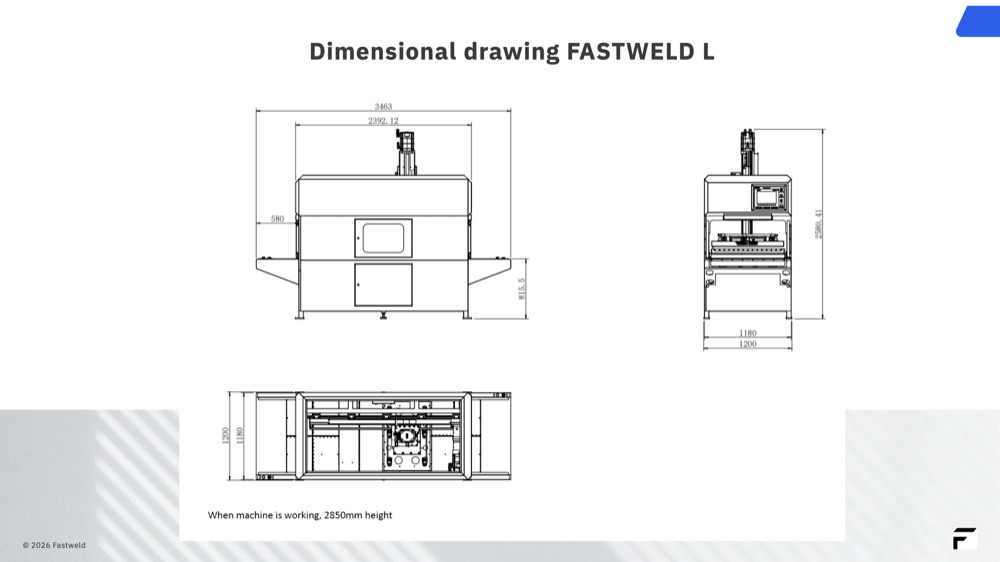

Dimensional drawings
Click a drawing to read the dimensions at full size.
Frequently asked questions
Fastweld L, XL, and XL+ can weld polyethylene, EVA, and polypropylene foams.
Fastweld L, XL, and XL+ operate ten times faster than conventional manual welding.
Fastweld L, XL, and XL+ require just 4 hours of operator training.
Request a quote
FASTWELD L, XL, XL+
Tell us the material you convert and your volumes. Our engineers check this machine against them before quoting.
- 1You tell us your material and volumes
- 2We check this machine against them
- 3You get a configuration and a price
