FASTLAM 25, 50
FASTLAM 25, 50 is an automatic foam laminating machine designed to laminate various foam materials with exceptional speed and precision. This machine offers a user-friendly interface and can laminate from planks and rolls, making it ideal for businesses looking to increase productivity and reduce downtime.
- Maximum welding thickness
- 200 - 400mm
- Maximum welding speed m
- 10 - 50m/min
- Minimum top layer thickness
- 2mm for 200kg density foams - 2mm for 200kg density foams
Suitable materials

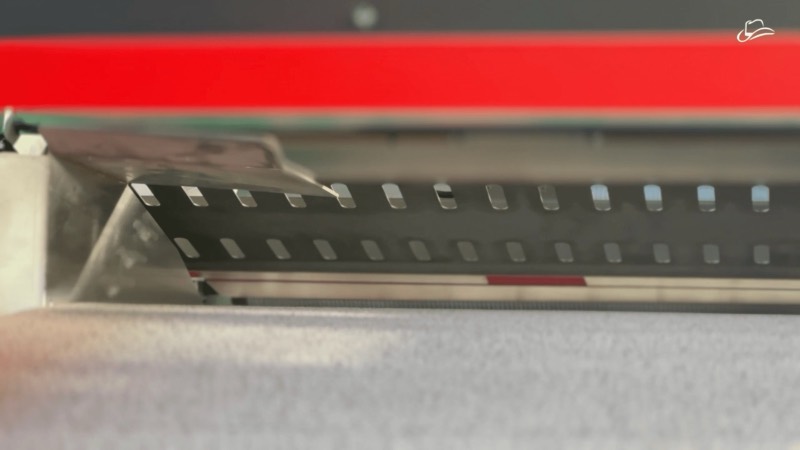

Fast and Accurate Laminating
FASTLAM 25, 50 provides precise foam laminating at speeds up to 40 meters per minute, ensuring high-quality results and increased productivity.

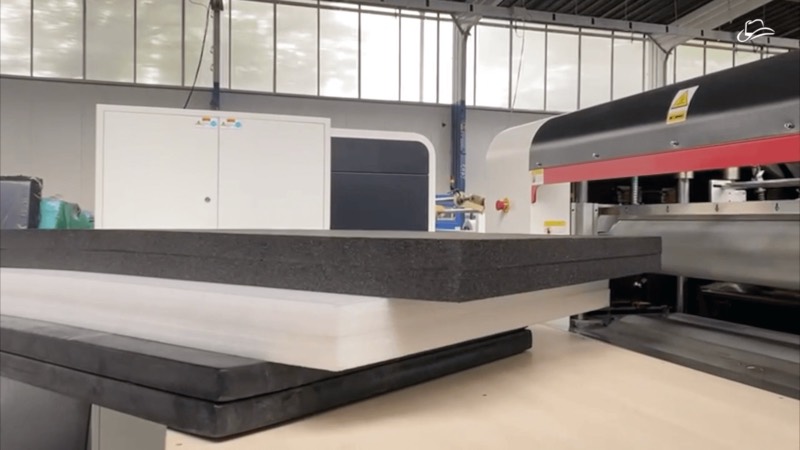

Lamination performance
FASTLAM makes a very thin and strong quality weld, next to impossible to see. This gives a lot of possibilities, call Lionel for more information!!!

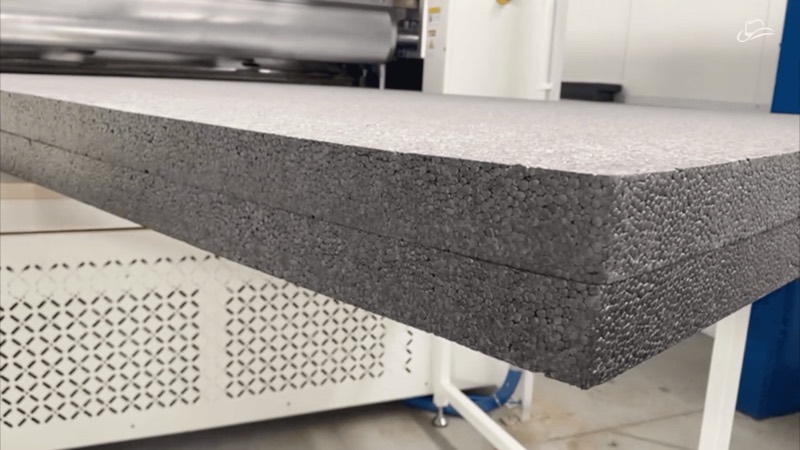

Perfect alignement
Due to its unique design, foam planks are welded in position. Alignements on the sides, and on the lenght are perfect: no waste. No need to push the planks into the machine, they are automatically pushed in.
Technical Specs
Key points
- Automatic foam laminating machines
- Compatible with various foam materials
- Laminating speeds up to 40 meters per minute
- Maximum foam width: 1300mm
- Number of layers: 2
| Model | Unit | FastLam 200 L | FastLam 200 XL | FastLam 320 | FastLam 400 |
|---|---|---|---|---|---|
| Dimensions | mm | 4051 x 2200 x 1995 | 4800 x 1660 x 2170 | 4850 x 3100 x 2370 | |
| Maximum welding thickness | mm | 200 | 200 | 320 | 400 |
| Maximum layers | 2 | 2 | 2 | 2 | |
| Maximum welding speed m | m/min | 10 | 50 | 50 | 50 |
| Minimum top layer thickness | 2mm for 200kg density foams | 2mm for 200kg density foams | 2mm for 200kg density foams | 2mm for 200kg density foams | |
| Weight | Kg | 2500 | 4300 | 4300 | 5000 |
| Installed Power | 380 V - Max. 25kW according to option | 380 VAC / 50hz 160 A | 380 VAC / 50hz 160 A | 380 VAC / 50hz 160 A | |
| Compressed air | Bar | 6-8 | 6-8 | 6-8 | |
| Material presets | 100 | 100 | |||
| Adjustable Table | mm | 5170 x 1660 x 1983 |

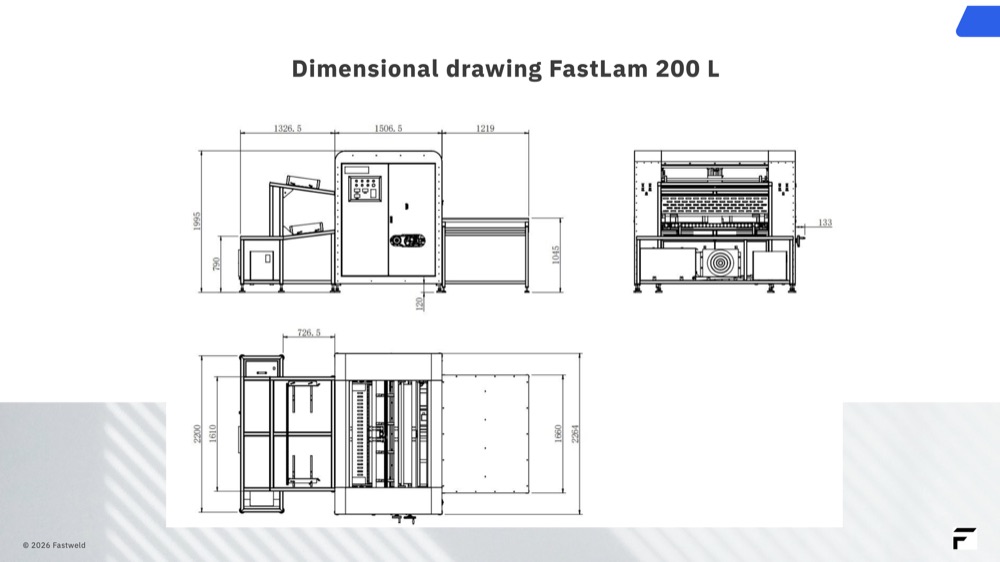

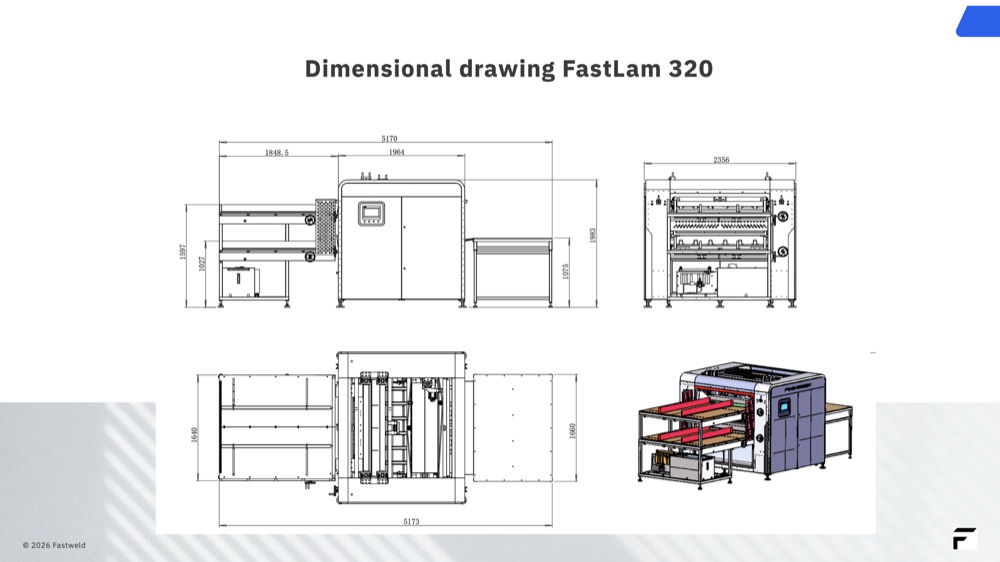

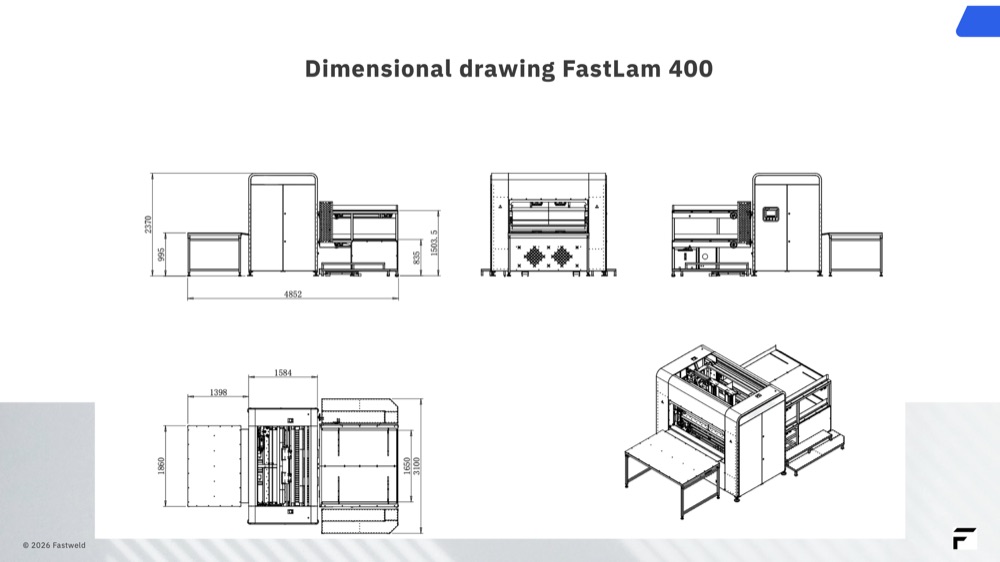

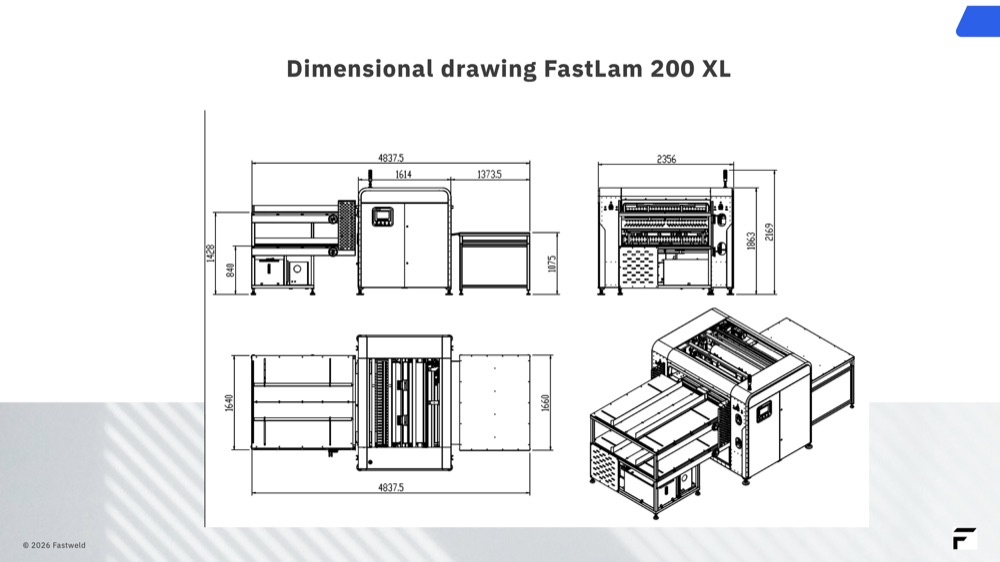

Dimensional drawings
Click a drawing to read the dimensions at full size.
Frequently asked questions
FASTLAM 25 can laminate a variety of foam materials, including Polyethylene, EVA, Polypropylene foams, and rubber shadow boards.
Yes!
Even used at fast speed Fastlam will never heat up, and will be delivering a constant quality.
