FASTGLUER HN
FASTGLUER HN is an automatic honeycomb gluing machine specifically designed for the Honeycomb paper and corrugated paper board industry. With its fully automated system, user-friendly interface, and compact design, it provides a cost-effective and efficient solution for your gluing needs.
- Weight
- 2000 - 5000Kg
- Machine cycle time
- 20 - 20sec
- Electrical power capacity
- 24 - 59Kw
Suitable materials

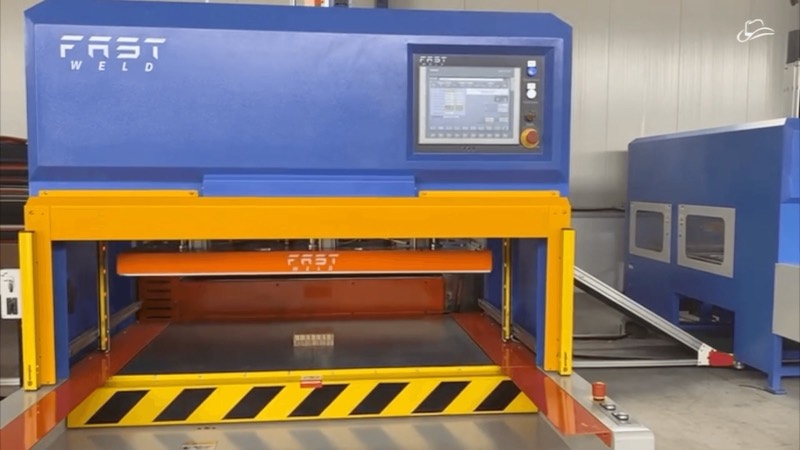

Accurate and Fast Gluing
FASTGLUER HN provides precise gluing for Honeycomb/corrugated paper palettes, parts and inserts, increasing productivity and reducing downtime.

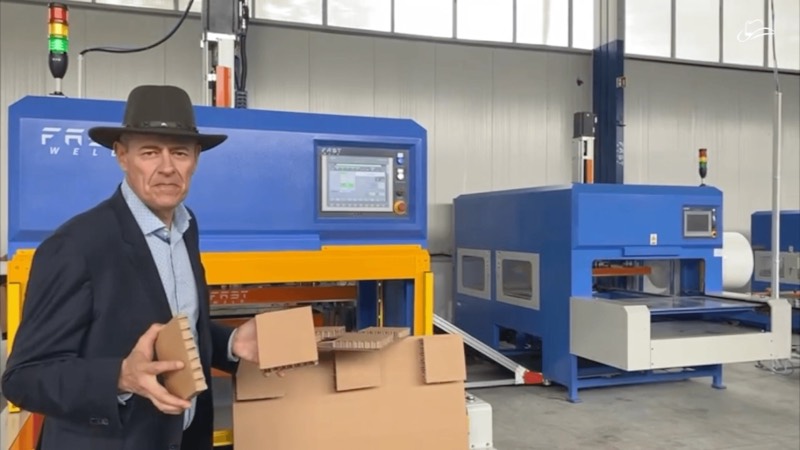

Board auto-loader

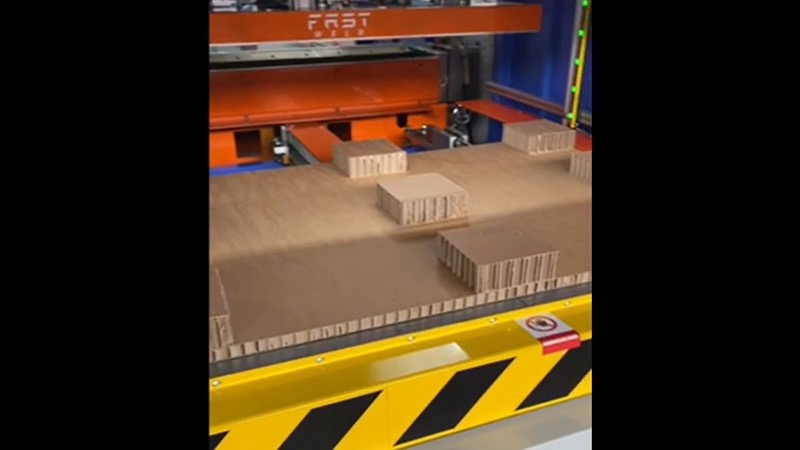

In order to maximize FASTGLUER HN, a board autoloader speeds up the process. Ready parts are falling onto an automatic conveyor, ready for packing.
Product assembly
FASTGLUER HN assembles material of different thicknesses by stacking them onto eachother. A needle plate picks up the material and drive it onto a glue roller. Easy and straight forward process.
Technical Specs
Key points
- Automatic gluing machine
- Designed for Honeycomb and corrugated board materials
- allow to manufacture honeycomb paper palette and inserts, corrugated board inserts
- User-friendly interface and minimal training required
- Can be operated with an automatic honeycomb/corrugated paper autoloader
| Model | Unit | FastGluer XL | FastGluer XXL |
|---|---|---|---|
| Max. material size | mm | 0 x 800 x 200 20 | 00 x 1300 x 200 |
| Dimensions | mm | x 1770 x 2540 756 | 0 x 2670 x 2827 |
| Glue tank capacity | 20 | 30 | |
| Heat up time | 25 | 35 | |
| Glue type | /PSA Hot melt EV | A/PSA Hot melt | |
| Weight | Kg | 2000 | 5000 |
| Machine cycle time | sec | 20 | 20 |
| Compressed air | Bar | 8 | 8 |
| Electrical power capacity | Kw | 24 | 59 |

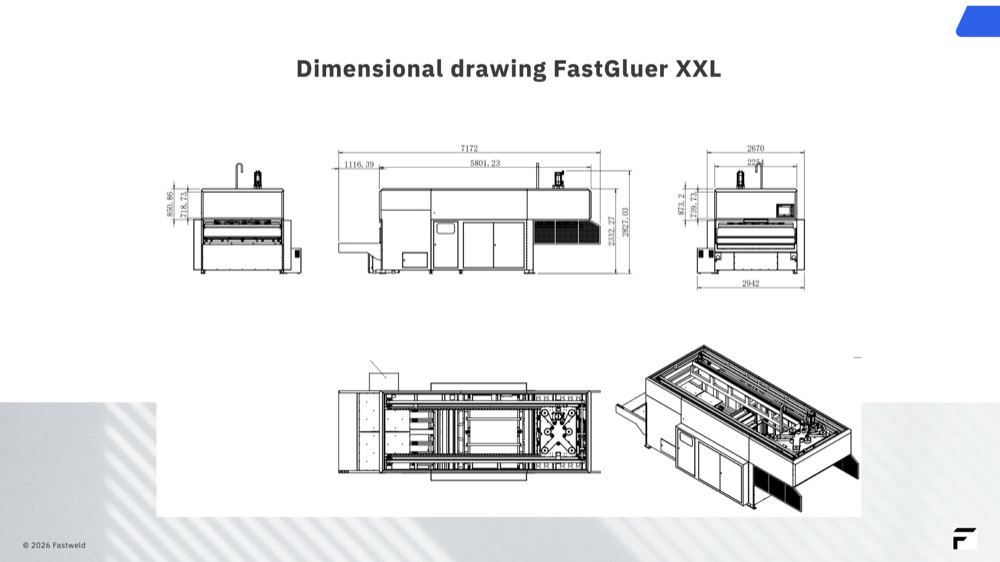

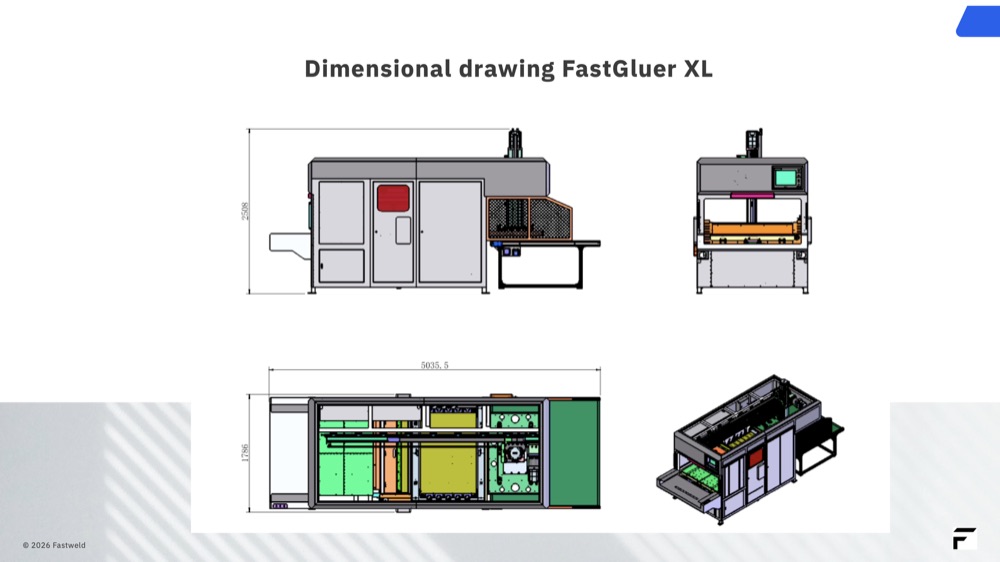

Dimensional drawings
Click a drawing to read the dimensions at full size.
Frequently asked questions
FASTGLUER HN is designed for gluing Honeycomb palettes and parts, as well as corrugated paper board.
It does take the material with a needle plate. The material is then feed on top of a roller to apply the glue. The part is the perfectly positioned and applied on top of the other one.d
FASTGLUER HN operates 10 times faster than conventional hand gluing solutions, providing a significant increase in productivity and efficiency. The positionning is perfect.
