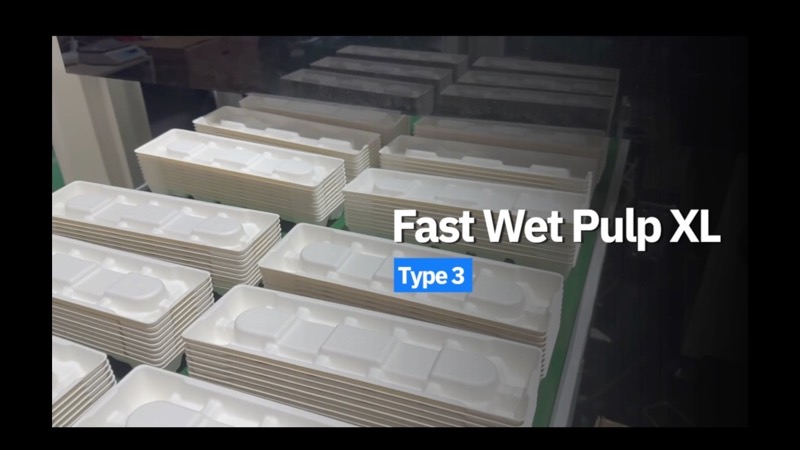

FAST WET PULP XL - TYPE 3
The Fast Wet Pulp XL is our fully electric and automatic pulp molding machine, designed for fast, precise, and energy-efficient production. It is suitable for a wide range of industries, including food, automotive, electronics, medical, logistics and more.
- Molding Area
- 950 x 780mm
- Total Motor Power
- 68KW
- Power Supply
- AC380V/50Hz
Suitable materials

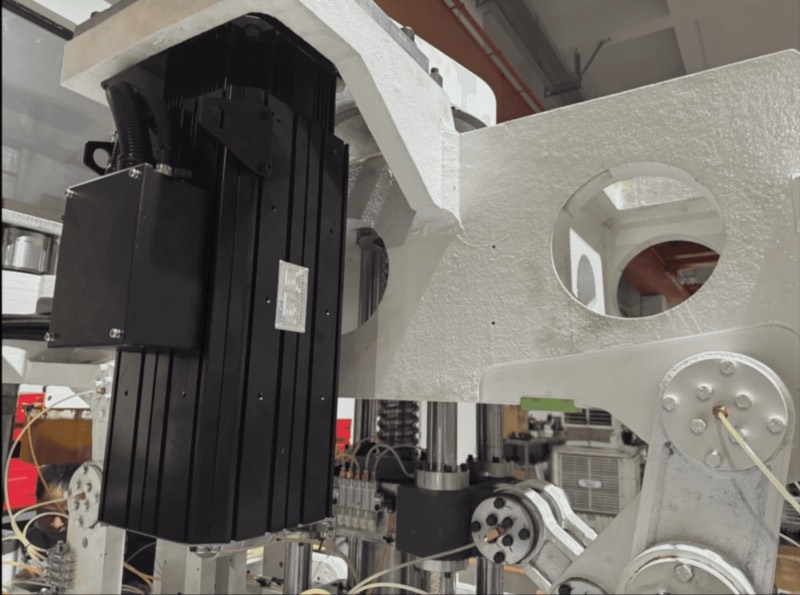

Fully Automatic & Electric System
Our Fast Wet Pulp XL is a fully automatic and electric machine with no oil. It therefore combines powerful performance and precision, minimal energy use, a silent operation space and no maintenance. It saves you time and money by increasing productivity and reducing labor costs.

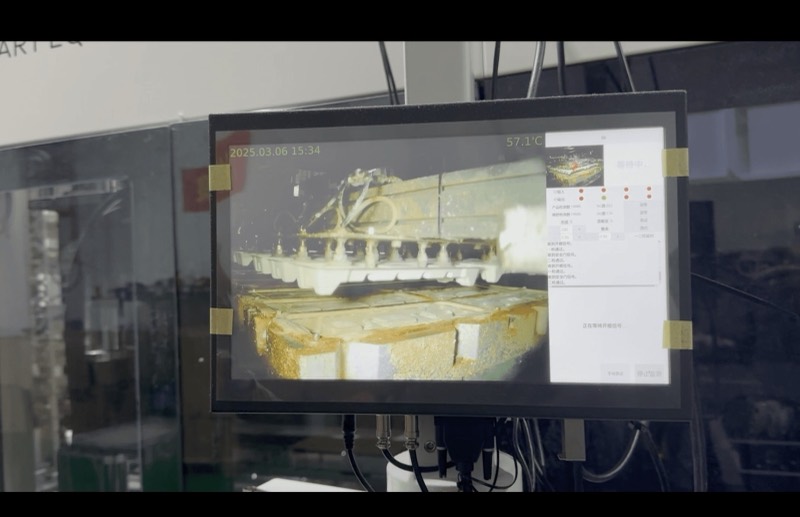

Full Vision & Control System
Thanks to the Siemens PLC control system with touchscreen HMI, digital adjustments can be made within seconds, making pressure, height, and cutting depth control fast and easy. In addition, the machine is equipped with a full vision control system, enabling to detect material defects.

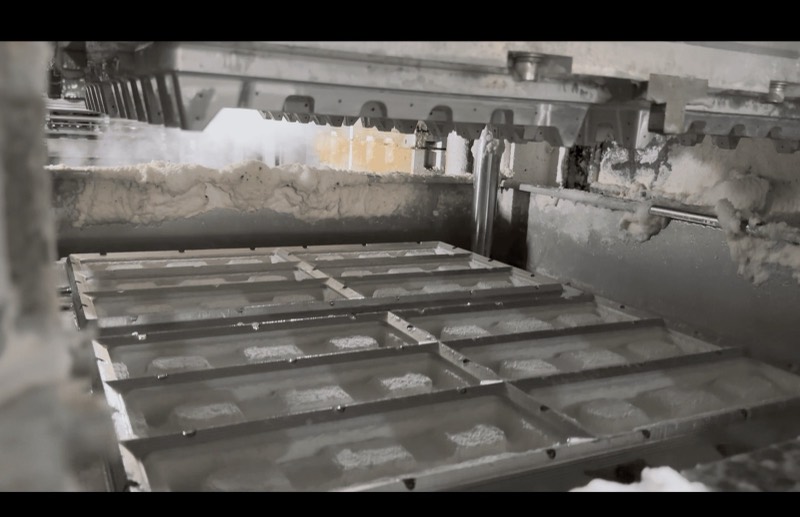

Key Machine Features
Equipped with 2 molding stations for continuous and high-productivity operation, the Fast Wet Pulp XL also features an automatic lubrication system for reduced maintenance and long-term reliability. An integrated automatic stacking system ensures efficient product handling, while the electric precision edge trimming system delivers clean and accurate finishing results.
Technical Specs
Key points
- Heating Method
- Thermal Oil
- Automatic Mold Cleaning
- Configurable cleaning modes
- Pulp Overflow Method
- Rear-side overflow
- PLC
- Siemens
- Dimensions
- 10875 x 3790 x 4036 mm
- Molding Area
- 950 x 780 mm
- Max. Product Height
- 80 mm
- Total Motor Power
- 68 KW
- Mold Temperature Controller
- 103 KW
- Air Pressure
- 0.5-0.6
- Power Supply
- AC380V/50Hz
- Vacuum
- -0.06
- Main Machine Power Consumption/Hour
- 6
- Mold Temperature Controller Power
- 46
- Electricity Consumption
- < 4,000 kWh/ton (Full system)
- Max. Capacity
- 1 Ton per day
- Water Consumption
- 2 - 3 tons / 24 hours
- Hot Press Max Closing Height
- 480 mm
- Hot Press Min Closing Height
- 400 mm
- Heating Method
- Thermal Oil
- Hot Press Lifting Stroke
- 190 mm
- Trimming Lifting Stroke
- 190 mm
- Punching Speed (no feeding) m
- 330 mm/s
- Max. Cutting Pressure
- 80 T
- Cutting Accuracy
- ± 0.1 mm
- Positioning Accuracy
- ± 0.1 mm
- Main Materials
- A3 Steel Plate + Square Tubing
- Automatic Mold Cleaning
- Configurable cleaning modes
- Automatic Mold Cleaning Water Pressure
- 1.5
- Total Weight
- 25500 Kg
- Pulp Overflow Method
- Rear-side overflow
- PLC
- Siemens

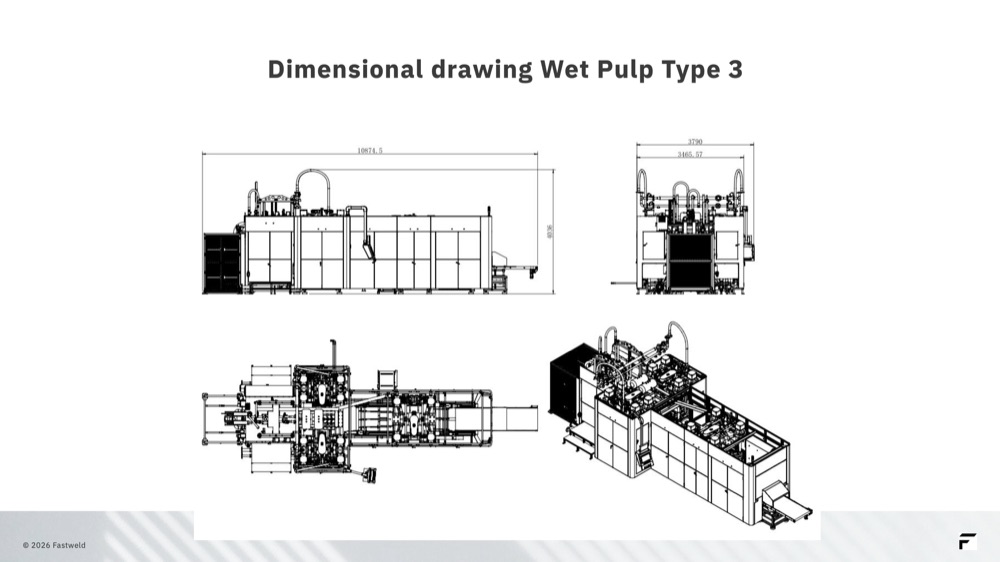

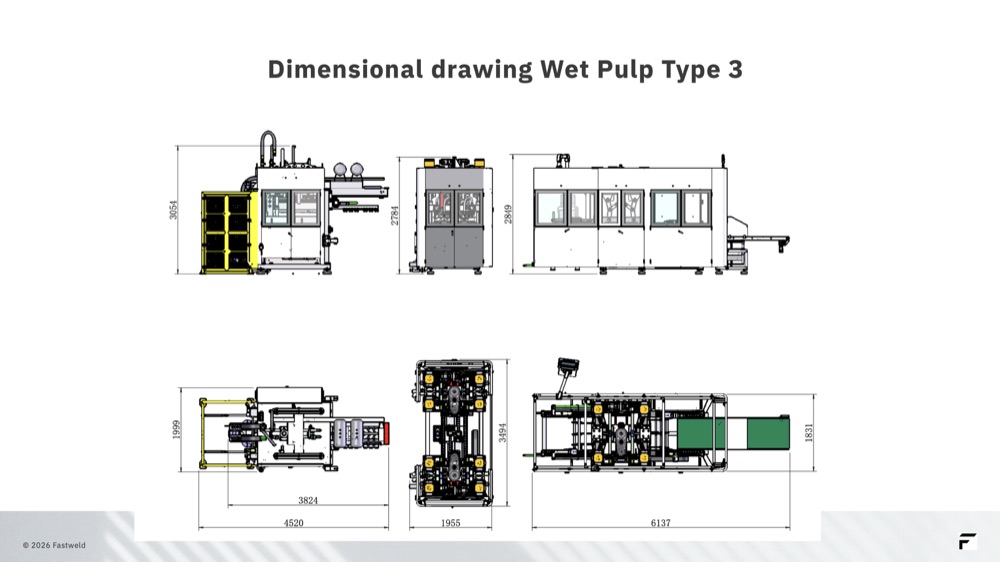

Dimensional drawings
Click a drawing to read the dimensions at full size.
