FAST PLOTTER

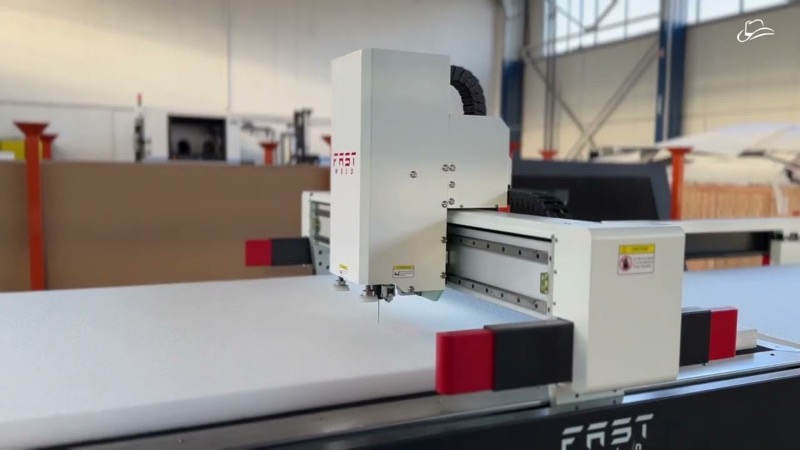

FASTPLOTTER is an automatic pneumatic knife cutting table designed for precision and efficiency. With two devices for cutting and creasing, FASTPLOTTER can handle a variety of materials, including plastic foams, honeycomb paper, felt, and corrugated paper and plastic, textile from planks or rolls.
- Weight
- 00 - 3084Kg
- Max. cutting speed m
- 700 - mm/s
- Standard Blade thickness
- 1 - mm
Suitable materials

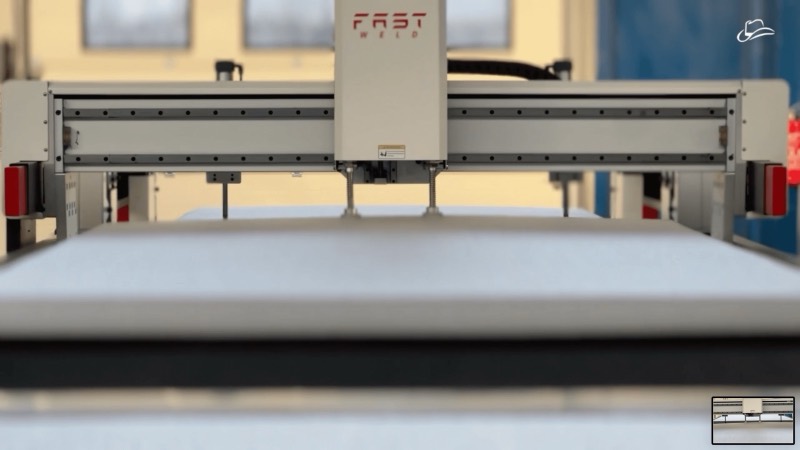

Automatic and efficient
FASTPLOTTER operates five times faster than conventional cutting tables, making it an essential tool for increasing production efficiency.

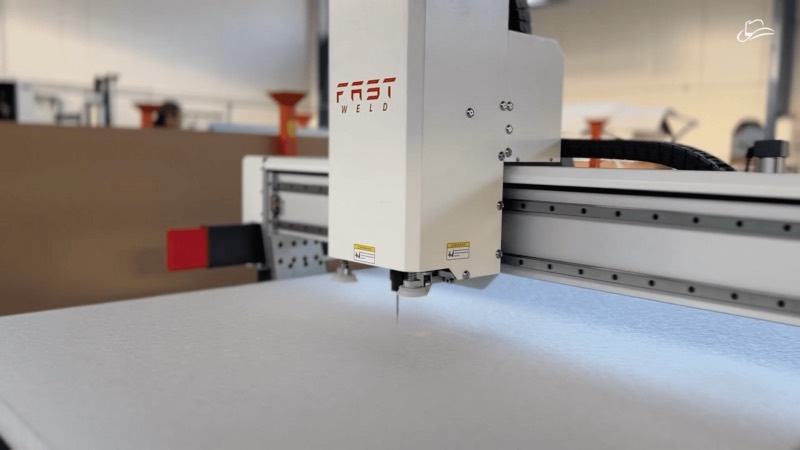

Dual-head cutting and creasing
With two heads for cutting and creasing, FASTPLOTTER ensures precision and versatility for a variety of materials. FASTPLOTTER is also available with two cutting heads.

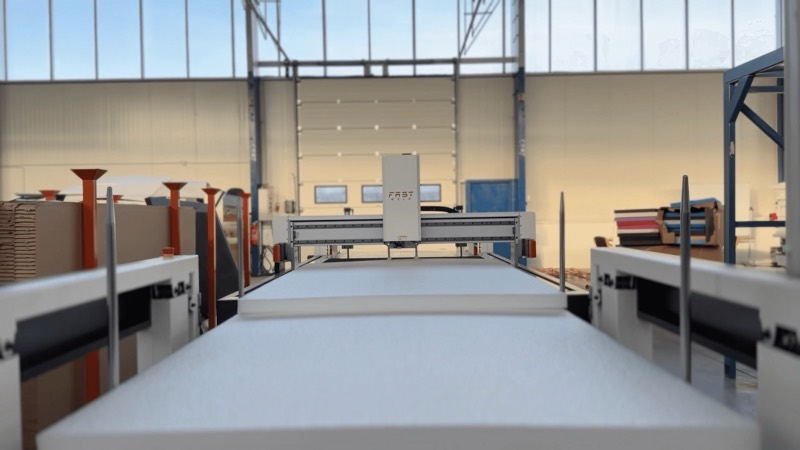

Plank auto-loader
FASTPLOTTER features a plank auto-loader to maximize cutting efficiency and eliminate downtime.
Technical Specs
Key points
- Automatic pneumatic knife cutting table
- Two devices for cutting and creasing
- Plank auto-loader
- No operator required for plank loading
| Model | Unit | L | L Single Auto | L Dual Auto | XL | XL Single Auto | XL Dual Auto |
|---|---|---|---|---|---|---|---|
| Maximum material size | mm | 0 x 100 1300 x | 2400 x 100 1300 | x 2400 x 100 | 00 x 100 28 | 00 x 1300 x 100 2800 | x 1300 x 100 |
| Overall Dimensions | mm | 0 x 1765 7600 | x 1810 x 1765 7600 | x 1810 x 1765 | 0 x 1800 796 | 6 x 1980 x 1830 7966 | x 1980 x 1830 |
| Weight | Kg | 00 | 2500 | 2500 | 500 | 3000 | 3084 |
| Max. cutting speed m | mm/s | 700 | 700 | ||||
| Cutting Heads | 1 | 1 | 2 | 1 | 1 | 2 | |
| Standard Blade thickness | mm | 1 | 1 | ||||
| Standard Blade length | mm | 30- 120 | 30- 120 | ||||
| Compressed air requirements | Bar | 6-7 | 6-7 | ||||
| Electrical requirements and Power capacity | z, 8 KW | 380V, 50Hz, 8 KW | Hz, 8 KW | 380V, 50Hz, 12 KW | |||
| Max. cutting thickness | mm | 100 | 100 | ||||
| Automatic loading/ unloading | o | Yes | No | Yes | |||
| Max. Loader stacking height | mm | 600 | |||||
| Maximum Loader stacking height | mm | 600 |

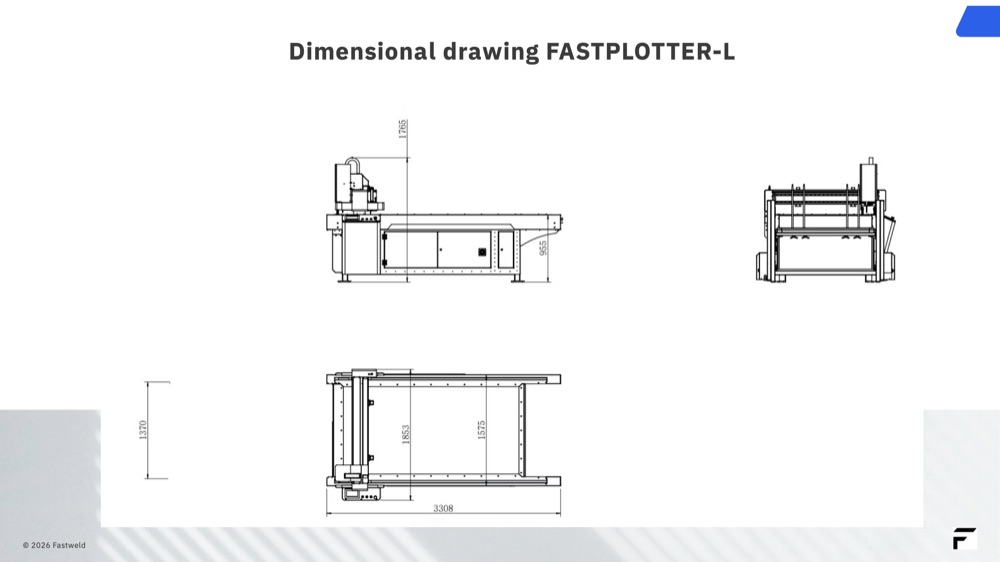

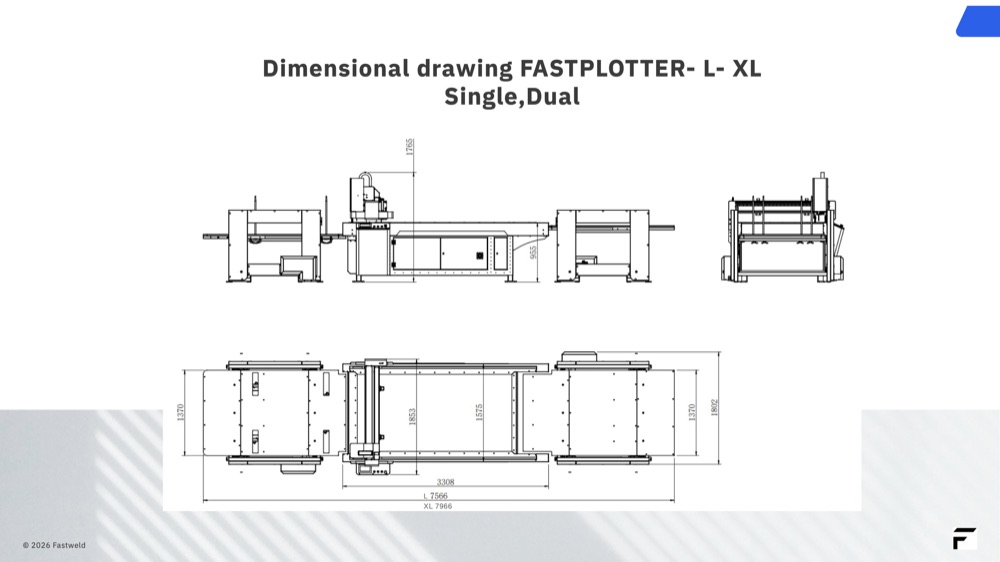

Dimensional drawings
Click a drawing to read the dimensions at full size.
Frequently asked questions
FASTPLOTTER operates five times faster than conventional cutting tables.
Yes, FASTPLOTTER can cut plastic foams, honeycomb, felt, corrugated plastic and corrugated board from planks.
No, FASTPLOTTER's automatic loading and unloading system eliminates the need for an operator to change planks on the cutting table.
