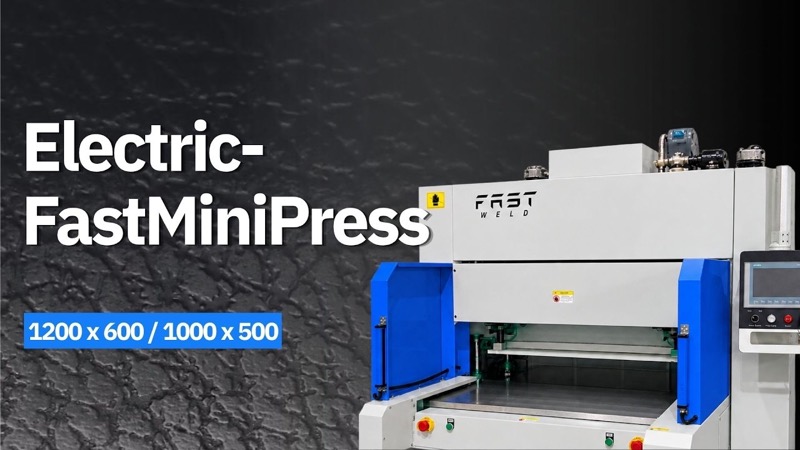

ELECTRIC- FASTMINIPRESS
Our Electric-FastMiniPress is a manual, fully electric press. It delivers high precision and a powerful punching force, making it ideal for cutting Foams, Honeycomb, Leather, Textiles, Seals & Gaskets and more.
- Punching force
- 25 - 80T
- Cutting area
- 1000 x 500 - 1200 x 600mm
- Cutting speed - cycle time
- 5,2 - 5,8sec
Suitable materials

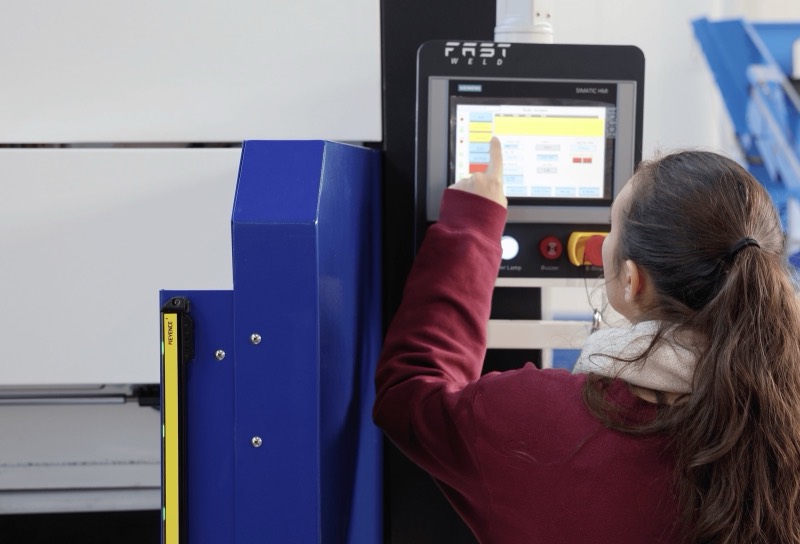

User friendly
Our E-FastMiniPress is very user-friendly. Thanks to its Siemens PLC interface, settings and parameters can be adjusted in just seconds.

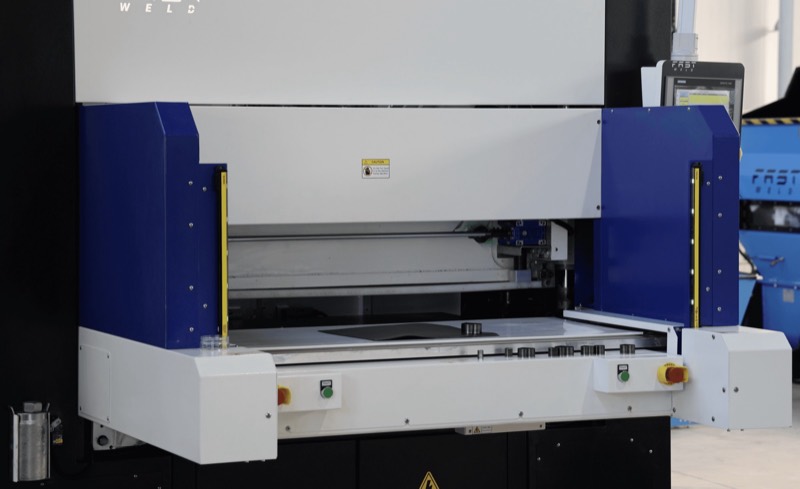

Tonnage & cycle time
The machine is available with different punching forces, ranging from 25 to 80 tons. With a full cycle time of just 5 seconds, it delivers fast and efficient production.
Fully electric
As the E-FastMiniPress is fully electric, it requires significantly less maintenance. In addition, no hydraulic oil is needed, eliminating the risk of leaks.
Technical Specs
Key points
- Cutting Area
- 1000 x 500 mm / 25 tons
- 1200 x 600 mm / 40 tons
- 1200 x 600 mm / 80 tons
- 1200 x 600 mm
- 40 T
- 80 T
- 2094 x 1857 x 2092 mm
- 5,8 sec
- 9,5 Kw
| Model | Unit | 1000 x 500 - 25T | 1200 x 600 - 40T | 1200 x 600 - 80T |
|---|---|---|---|---|
| Punching force | T | 25 | 40 | 80 |
| Cutting area | mm | 1000 x 500 | 1200 x 600 | 1200 x 600 |
| Cutting speed - cycle time | sec | 5,2 | 5,2 | 5,8 |
| Max. opening | mm | 320 | 320 | 320 |
| Stroke | mm | 150 | 150 | 150 |
| Number of columns | 4 | 4 | 4 | |
| Dimensions | mm | 2094 x 1757 x 2038 | 2094 x 1857 x 2092 | 2094 x 1857 x 2092 |
| Weight | T | 2,85 | 3,5 | 3,5 |
| Installed power | Kw | 8 | 9,5 | 9,5 |

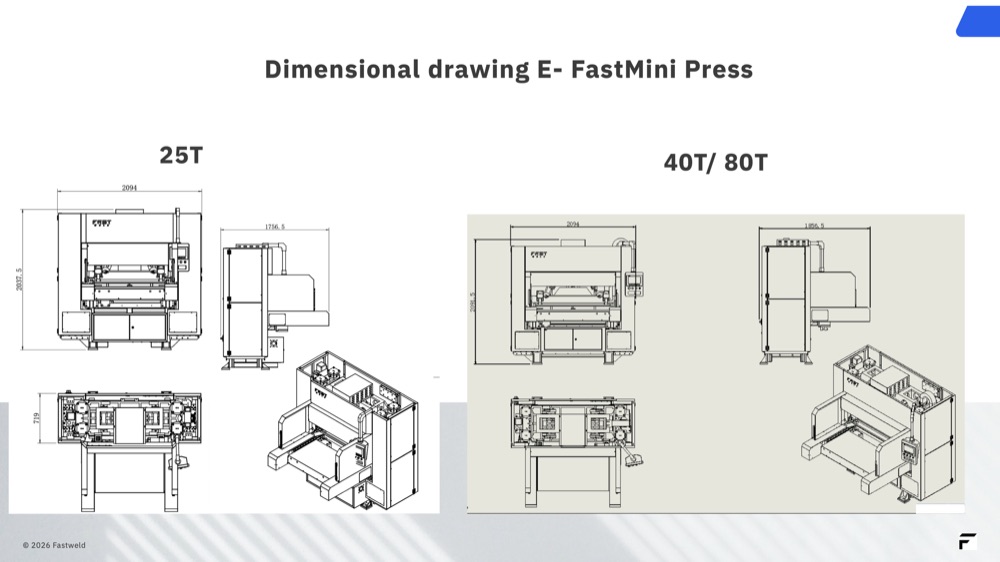

Dimensional drawings
Click a drawing to read the dimensions at full size.
