ELECTRIC- FASTAUTOPRESS

Our E- FastAutoPress is a fully-automatic and fully electric die cutting press machine designed for fast and efficient cutting. Thanks to its rotating cutting table, automatic product loading, and a less than 5 seconds die-cutting time, it is the ultimate solution for cutting plastic foams, honeycomb, felt, rubber, corrugated plastic in planks or rolls.

Cutting Area: 1400 x 900 - 1750 x 1250mm
Cutting force: 200 - 250Ton
Full cycle time: 4 - - 5sec

Request a quote See the specifications

Suitable materials

ELECTRIC- FASTAUTOPRESS

Cutting Area: 1400 x 900 mm
Cutting force: 200 Ton

Request a quote

Automatic loading.
Planks & rolls are automatically loaded into the E- FastAutoPress, allowing a continious fast & smooth cutting process.

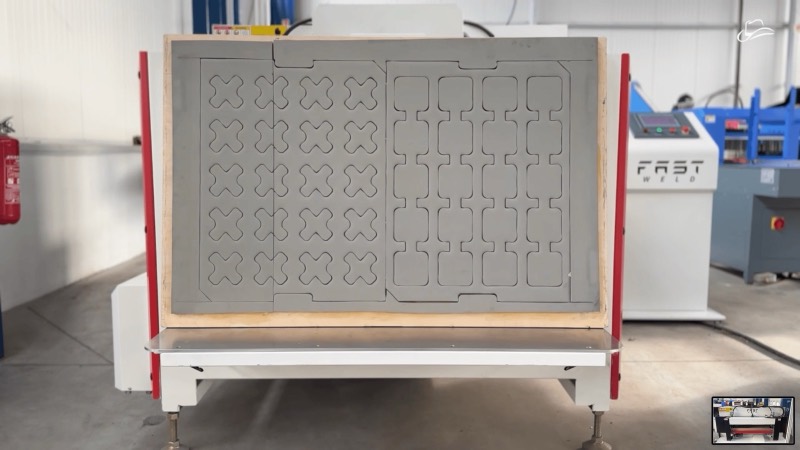

Easy tool installation and maintenance.
With its user-friendly design, E- FastAutoPress allows for easy tool installation and maintenance, with our team on call for any assistance.

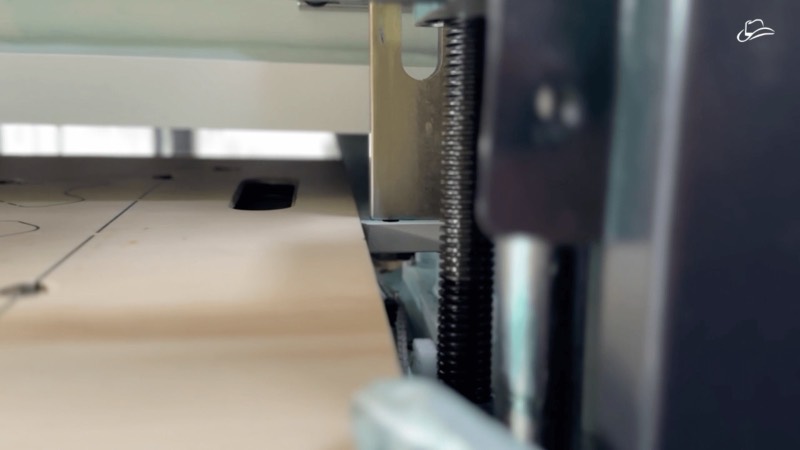

Rapid cutting and precision.
E-FastAutoPress delivers fast, accurate cutting with a die-cut time of less than 5 seconds, ensuring your production stays on schedule. Its rotating bed gives a perfect cutting at all time.

Technical Specs

Key points

Cutting Area
1400 x 900 / 150 tons
1750 x 1000 / 200- 400 tons
1750 x 1250 / 250 tons- 400 tons
Other dimensions & tonnage are on demand.
1750 x 1000
1750 x 1250
200- 400 tons
250 tons- 400 tons
Overall dimensions
18 kW/ 30kW

Model	Unit	E- FastAutopress L	E- FastAutopress XL
Cutting Area	mm	1400 x 900	1750 x 1250
Cutting force	Ton	200	250
Number of columns		4
Full cycle time	sec	4 -	5
Max. opening	mm	340
Min. opening	mm	25
Overall Dimensions	mm	574 x 2673 x 1925	5921 x 3188 x 1925
Outer dimensions	mm	574 x 2673 x 1925	9921 x 3188 x 1925
Weight	Kg	9600	13000
Electrical requirements	KW	40	60
Stroke	mm	190

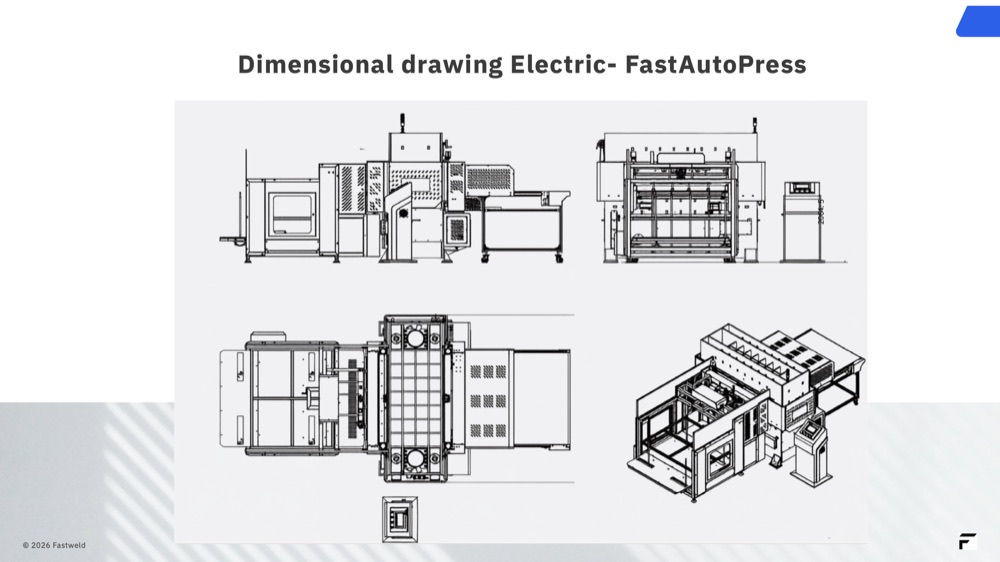

Dimensional drawings

Click a drawing to read the dimensions at full size.

Frequently asked questions

Punching force goes from 20 to 400T with a max. punching height of 100mm.

The cycle time lasts is less than 5 sec- Our machine can reach 900 Stamps/hour.

Clean working environment (no oil); Safe working environment (low noise); Easy and cheap maintenance (no oil, no gasket); Automatic loading; Possible inline waste removal

Maintenance costs are reduced because there are no gaskets, no oil. It is easy to maintain the machine and keep it clean.

Tools are loaded from the front or side of the machine and are clamped; Tool dimensions go from 100*100 to 1750*1250mm or more, specific request on demand.

The table rotates automatically.

With a belt feed system or with an automatic loader with vacuum cups.

Easy set up on touch screen

Automotive, Flooring, Rubber, Packaging, Foam, Leather, Textiles, Composite...

Request a quote
