ELECTRIC- FASTMANUPRESS

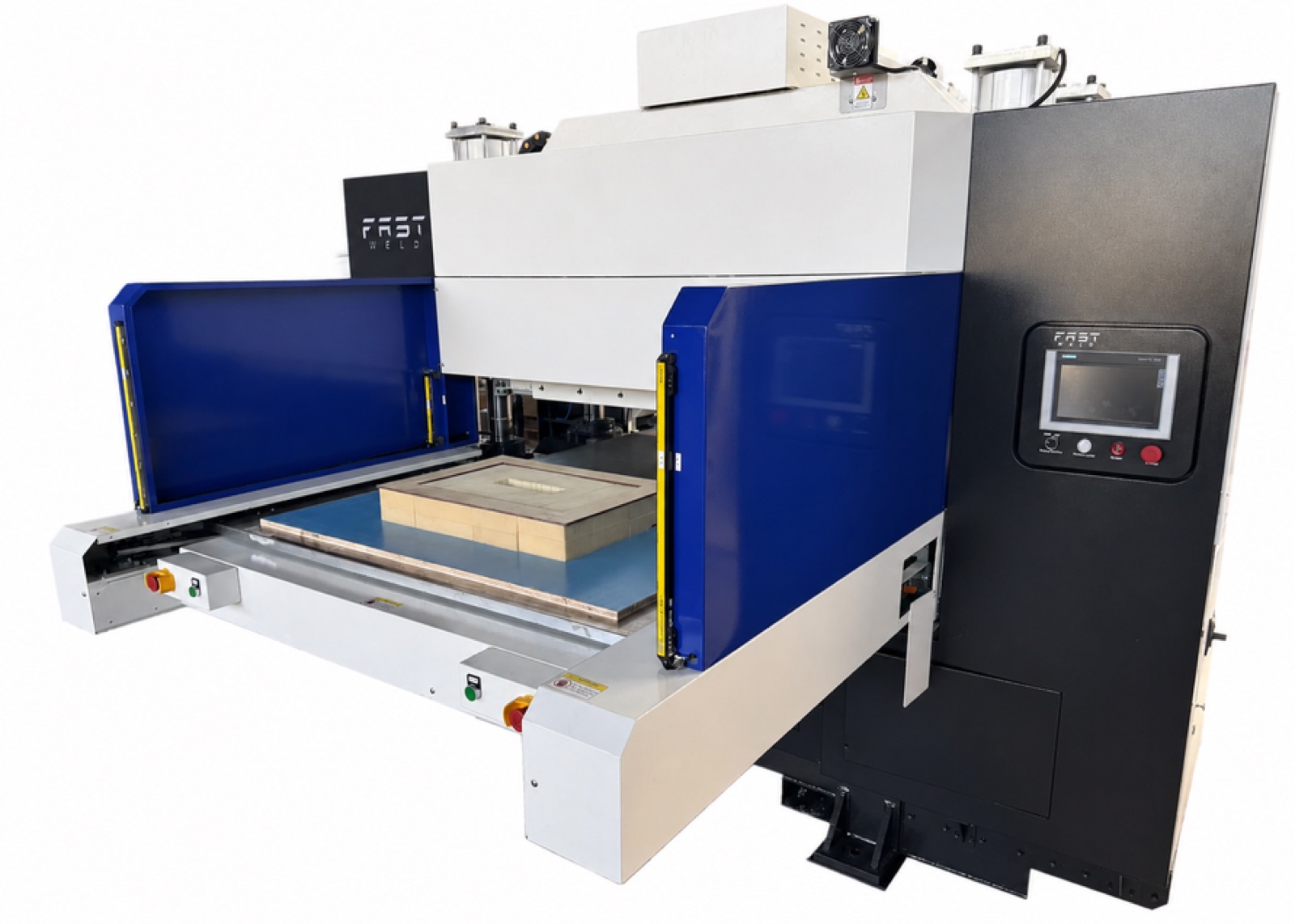

E- FastManuPress is a manual, fully electric die cutting machine featuring an automatic rotating cutting table, one cutting table on each side, and a fast cutting cycle time of less than 5 seconds. Designed to handle two different tool heights on each cutting table, E- FastManuPress can cut plastic foams, honeycomb, felt, and rubber planks.
- Cutting Area
- 1400x900 - 1750x1250mm
- Cutting force
- 150 - 250Ton
- Full cycle time
- 5-6 - sec
Suitable materials

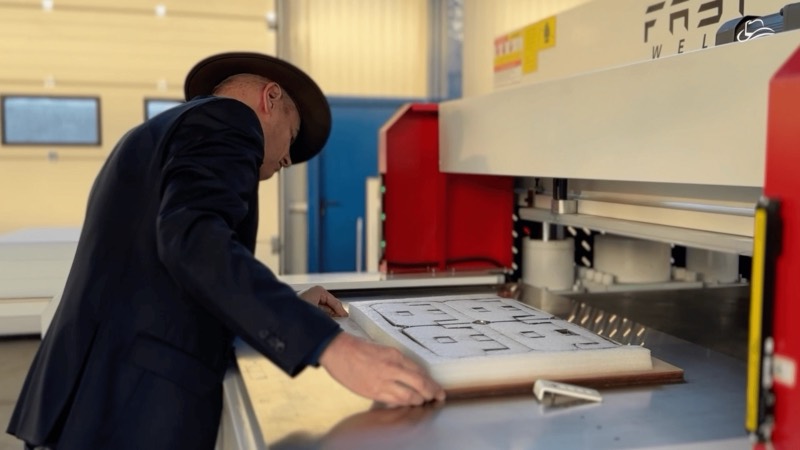

Dual cutting tables
E- FastManuPress features one cutting table on each side of the press machine, allowing for greater versatility and efficiency. Different blade heights can be installed on each side of the E- FastManuPress. For example, it is possible to cut 50 mm foam on one side, and corrugated board 7mm on the other side.

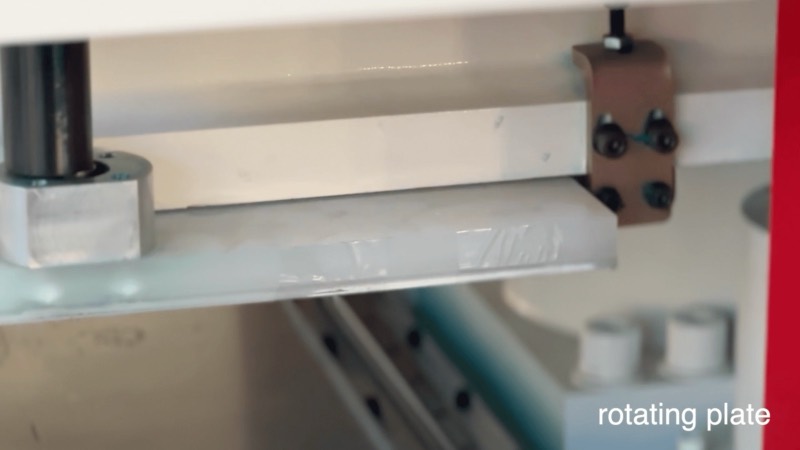

Fast cutting cycle
With a cutting cycle time of less than 5 seconds, E- FastManuPress ensures production remains on track. More than 720 STAMPS PER HOUR!!!!!!

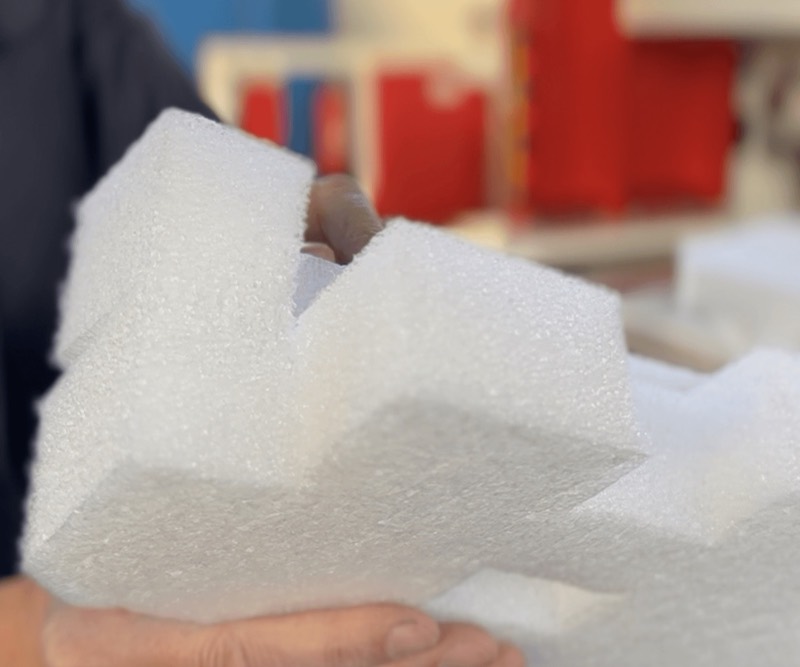

Precision die cutting
E- FastManuPress is very precise allowing to make hinges without hard MDL foam layer. Its rotating bed helps to preserve the tools. Our focus: A CLEAN CUT.

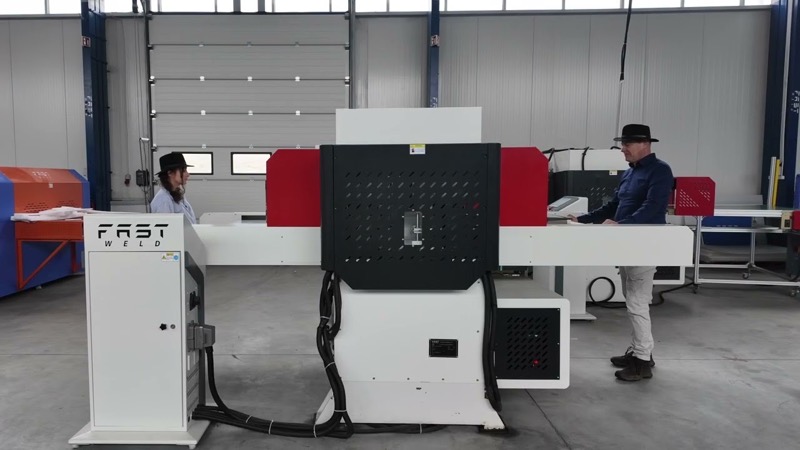

Two tables, two operators
The machine has a left and a right working table, so two operators can load and unload at the same time while the press keeps cycling. Combined with the rotating upper plate and a 5 to 6 second die-cutting time, it keeps the press working rather than waiting.
Sized for demanding materials
Available in two sizes, 150 and 250 tons. The punching force makes it the right choice for foam and honeycomb, which need more force than leather or gaskets.
Technical Specs
Key points
- Cutting force: 20 to 150 tons
- Cutting area: 1000 x 600, 1400 x 900, 1600 x 1250, other dimension on demand
- Cutting cycle time: 5 seconds
- Automatic rotating cutting bed
- Dual cutting tables with different tool heights
| Model | Unit | E- FastManuPress | E- FastManuPress XL |
|---|---|---|---|
| Cutting Area | mm | 1400x900 | 1750x1250 |
| Number of tables | 2 | 2 Tables | |
| Cutting force | Ton | 150 | 250 |
| Number of columns | 4 | ||
| Full cycle time | sec | 5-6 | |
| Max. opening | mm | 330 | |
| Stroke | mm | 190 | |
| Overall Dimensions | mm | 3409x2928x2384 | 4869x3478x2437 |
| Weight | Kg | 7723 | 11515 |
| Electrical requirements | KW | 27 | 36 |

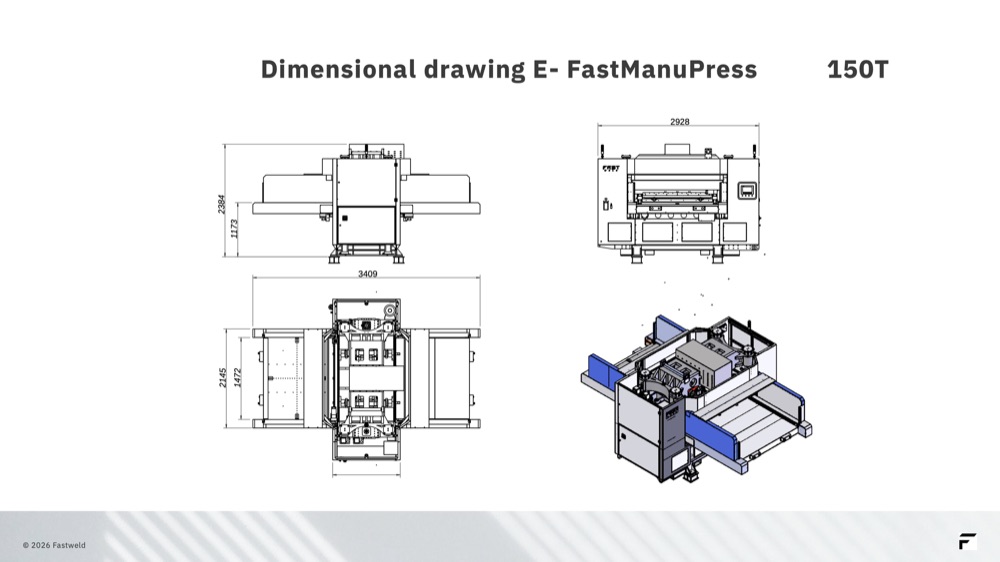

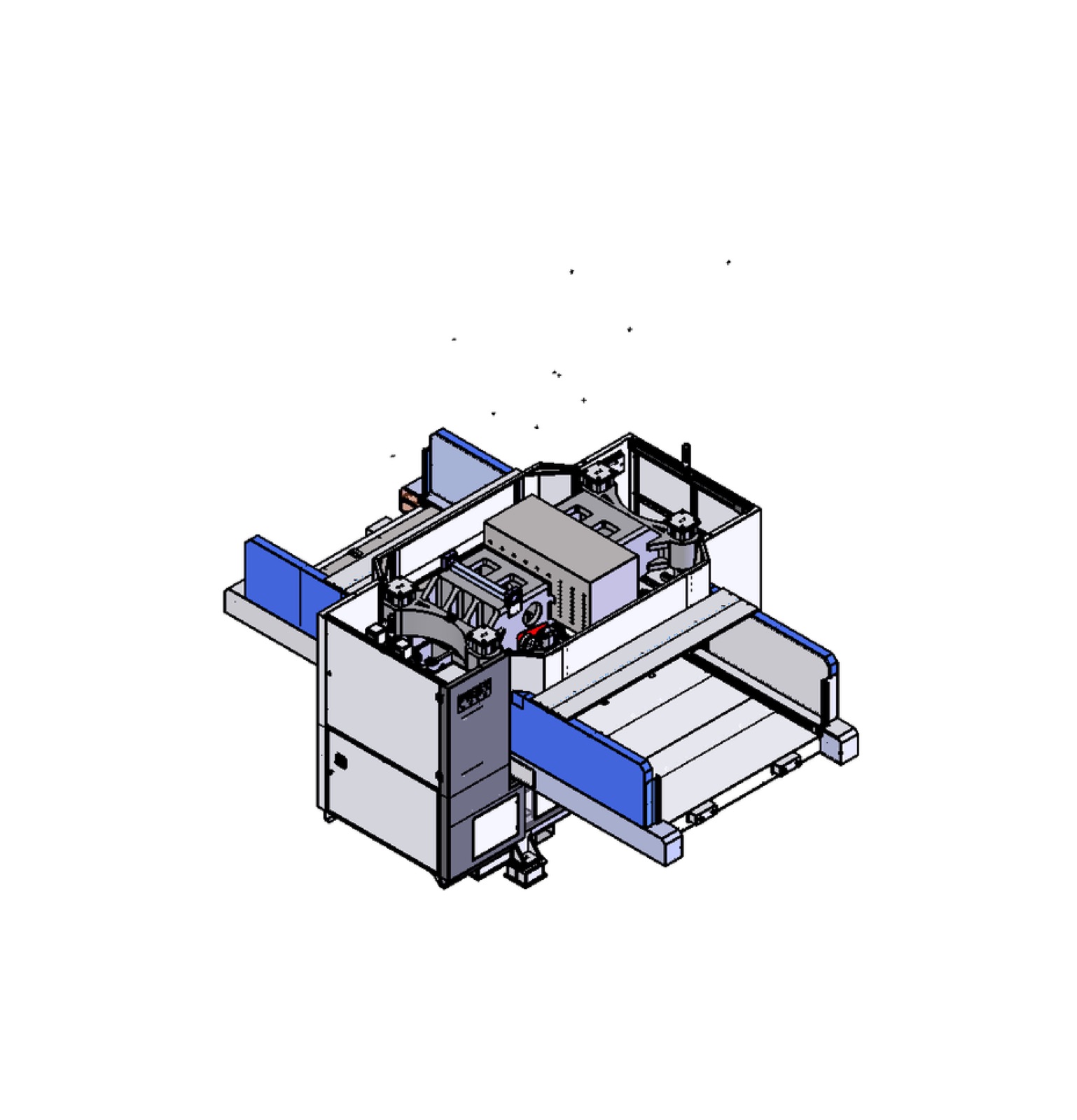

Dimensional drawings
Click a drawing to read the dimensions at full size.
Frequently asked questions
The cutting force ranges from 150 to 250 tons.
Yes, E- FastManuPress has the capability to die cut hinges.
The E- FastManuPress has a cycle time of 6 sec.
